Description
Powerful class D amplifier
1-channel subwoofer amplifier with class D circuit and integrated active crossover
- Mono amplifier
- 1 ohm stable
- Class D technology
- Variable active crossover and bass boost
- High-level input with auto-on function & dummy load
- Stable power supply
- Large terminals
- Black anodized heatsink with Ground Zero lettering

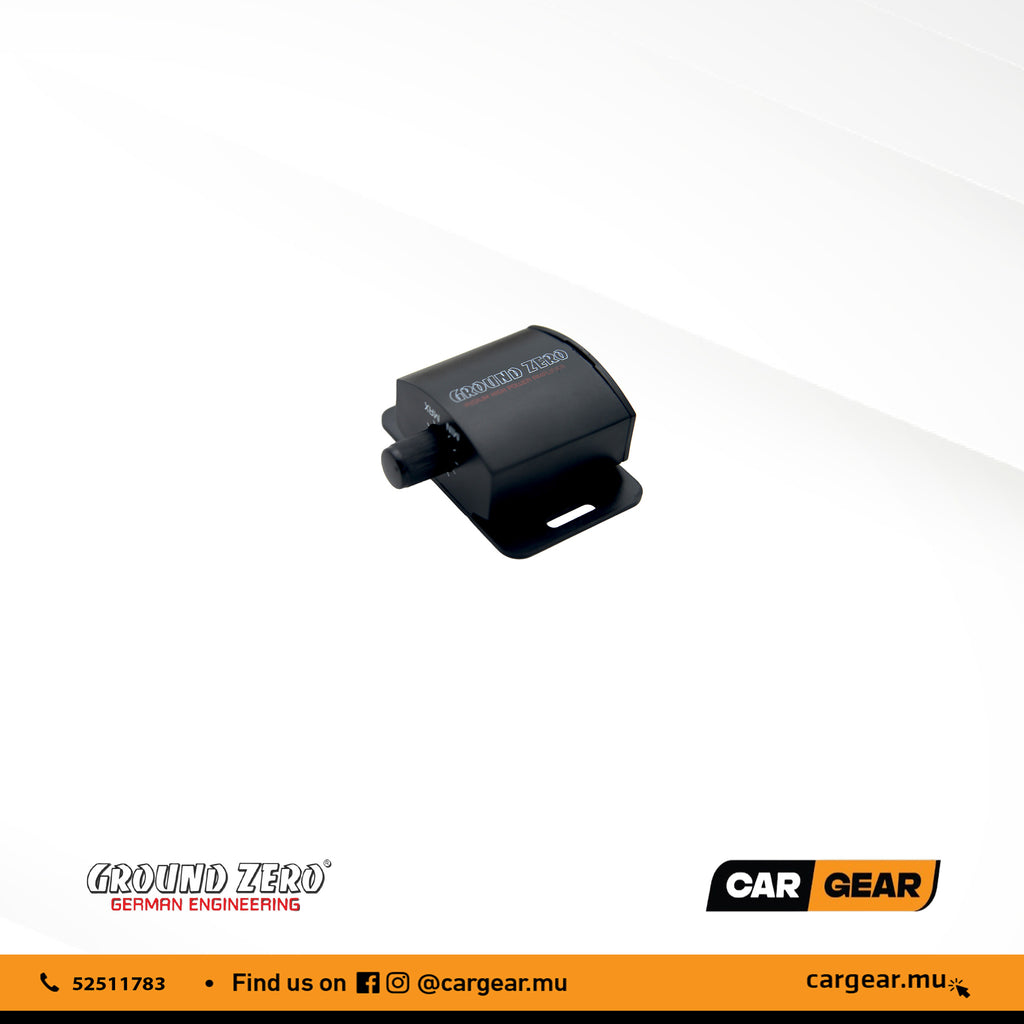

- Bass remote control included
- Triple protection circuit
| Model | High quality class D amplifier |
|---|---|
| Channels | 1 |
| Output Power (@ 4Ω) | 230 Watts RMS |
| Output Power (@ 2Ω) | 400 Watts RMS |
| Output Power (@ 1Ω) | 580 Watts RMS |
| max. Output Power (CEA-2006A / 10%THD+N) | 700 Watts |
| Frequency Response | 15 – 250 Hz |
| HPF / LPF / BPF | ● / ● / ● |
| Bass Boost / Phase switch | ● / ○ |
| High level input / Auto-on | ● / ● |
| Remote | ● |
| BIAS Setting | ○ |
| Linkmode | ○ |
| Dimensions (W x L x H) | 168 x 49 x 212 mm / 6.61″ x 1.93″ x 8.35″ |
