Description

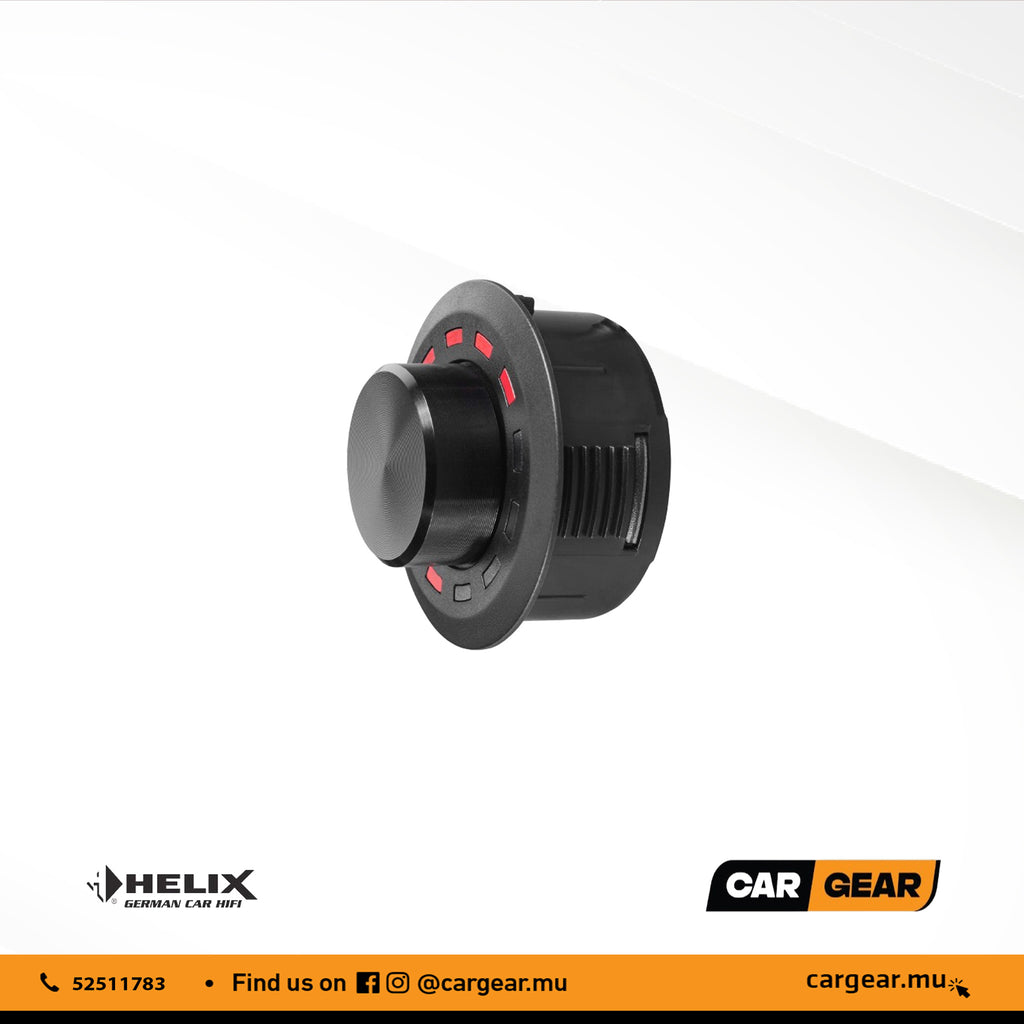

CONDUCTOR
One-touch remote control
The CONDUCTOR combines design and functionality in perfection. With just one knob you have all important functions of your (DSPs) sound system fully under control – from volume adjustment, signal source selection and setup change up to the control of an optionally installed Bluetooth HD Extension Card.
Tailor-made for your needs
The CONDUCTOR can always be optimally adapted to your needs – whether as a simple subwoofer remote or as a control unit for complex system configurations. For example, two playback zones with different volumes: music for the parents in the front and a radio play for the children in the back.
All signal sources under control
With the CONDUCTOR you can manage all your connected signal sources in no time at all. For example, use your smartphone as a digital media source and intuitively control its playback (play / pause, track forward / back) and volume in combination with the optional Bluetooth Extension Card.
Sound setup switching to match your taste
Manage different sound profiles on your DSP – depending on your personal taste and demands – and enjoy your music with consistently optimized sound quality.
Seamless integration
Thanks to its compact, fully symmetrical design and high-quality materials, the CONDUCTOR can be integrated almost seamlessly into the existing vehicle interior and blends in with its appearance as inconspicuously as an original part.
Features
- Independent control of up to 4 individual volumes such as Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer including full system mute
- Selectable volume ranges of 60 dB, 24 dB, 12 dB
- Selectable volume step size of 1 dB or 0.5 dB
- Individually configurable LED color for each volume menu
- Optional Bluetooth® module control including play, pause, track navigation and activation of pairing*

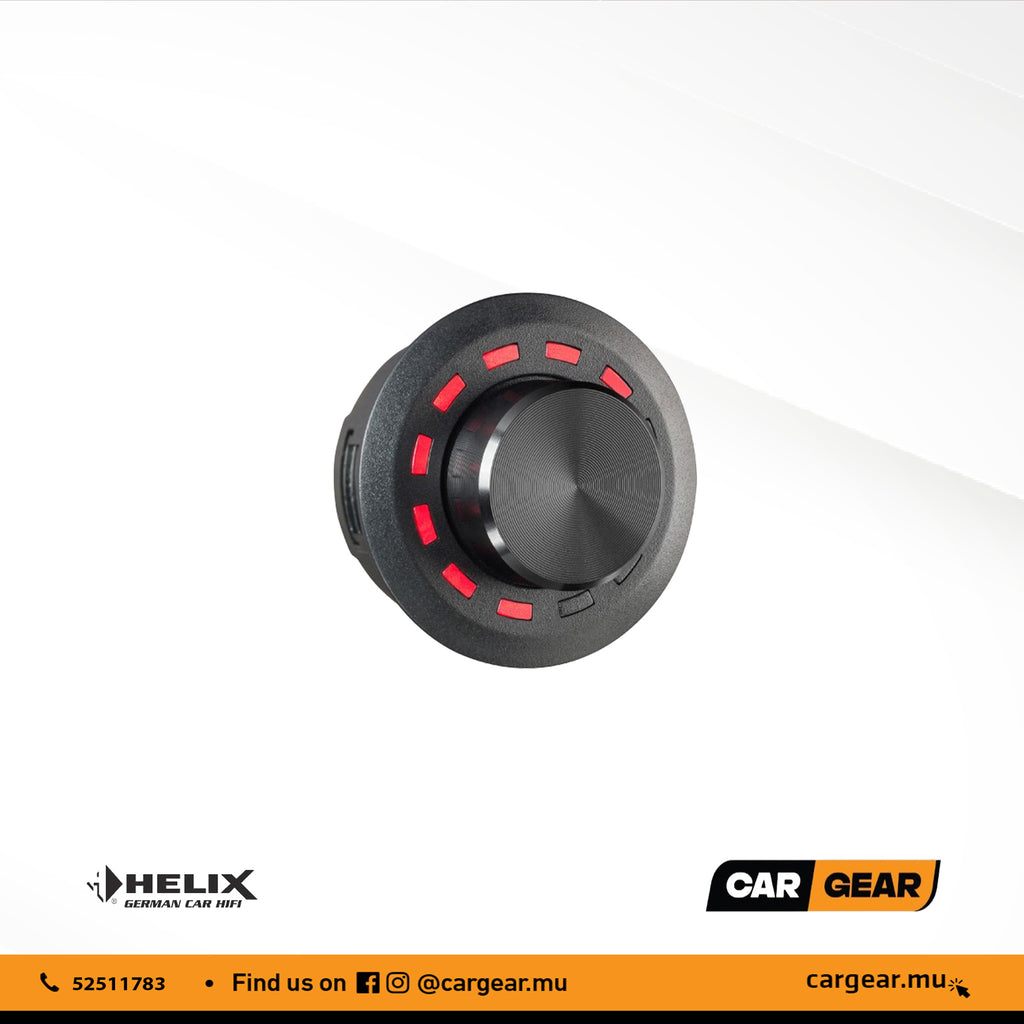

- 12 x RGB-LEDs for visual feedback
- Wide color space with over 16 million colors
- Configurable brightness and automatic dimming
- Easy installation
- Flush mount installation with Ø 1. 58” / 40 mm hole cut-out
- 16.4 ft / 5 m cable for SCP with split connector
- No separate power supply required
- Sound Setup switching with up to 10 presets and signal source selection
- Full configuration and updatability through the DSP PC-Tool software
* Supported by DSP products equipped with a Bluetooth Extension Card (Extension Card 2.0 – BT HD or HEC / MEC BT HD). The BT HD STREAMER is excluded
Technical data
| CONDUCTOR for SCP | |
| Housing | ABS housing with machined aluminum knob |
| Hardware | Rotary encoder, 12 x RGB-LEDs & 48 MHz ARM processorr |
| Connection | Single connector supply through NanoFit |
| Cable length |
5 m total length – split into 4.8 m connection cable + 0.2 m CONDUCTOR cable |
| Dimensions (Ø x H) |
Ø 46 x 28.7 mm / Ø 1.81 x 1.13” |
| Installation depth |
17 mm / 0.67" |
Compatibility
|
CONDUCTOR for SCP
|
CONDUCTOR for Control Input
|
||
| BRAX | DSP | X | |
| HELIX | DSP ULTRA S | X | |
| DSP ULTRA | X | ||
| DSP PRO MK3 | X | ||
| DSP.3S | X | ||
| DSP.3 | X | ||
| DSP MINI MK2 | X | ||
| DSP MINI | X | ||
| P SIX DSP ULTIMATE | X | ||
| V EIGHTEEN DSP | X | ||
| V TWELVE DSP MK2 | X | ||
| V TWELVE DSP | X | ||
| V EIGHT DSP MK2 | X | ||
| AMPLIFY 206 DSP | X | ||
| M SIX DSP | X | ||
| M FOUR DSP | X | ||
| MATCH | UP 10DSP | X | |
| UP 10DSP – 24V Edition | X | ||
| UP 8BMW | X | ||
| UP 8DSP | X | ||
| UP 6DSP | X | ||
| UP 4DSP | X | ||
| M 5.4DSP | X | ||
| M 5DSP MK2 | X | ||
| PP 86DSP MK2 | X |
Notes:
- The CONDUCTOR cannot be combined with another control unit.
- The CONDUCTOR for Control Input can also be connected to newer devices with SCP input using an SCP-to-Control Input adaptor (Part No. M141313). If the adaptor is not included with your DSP device, it is available separately from your authorized dealer.
Scope of delivery

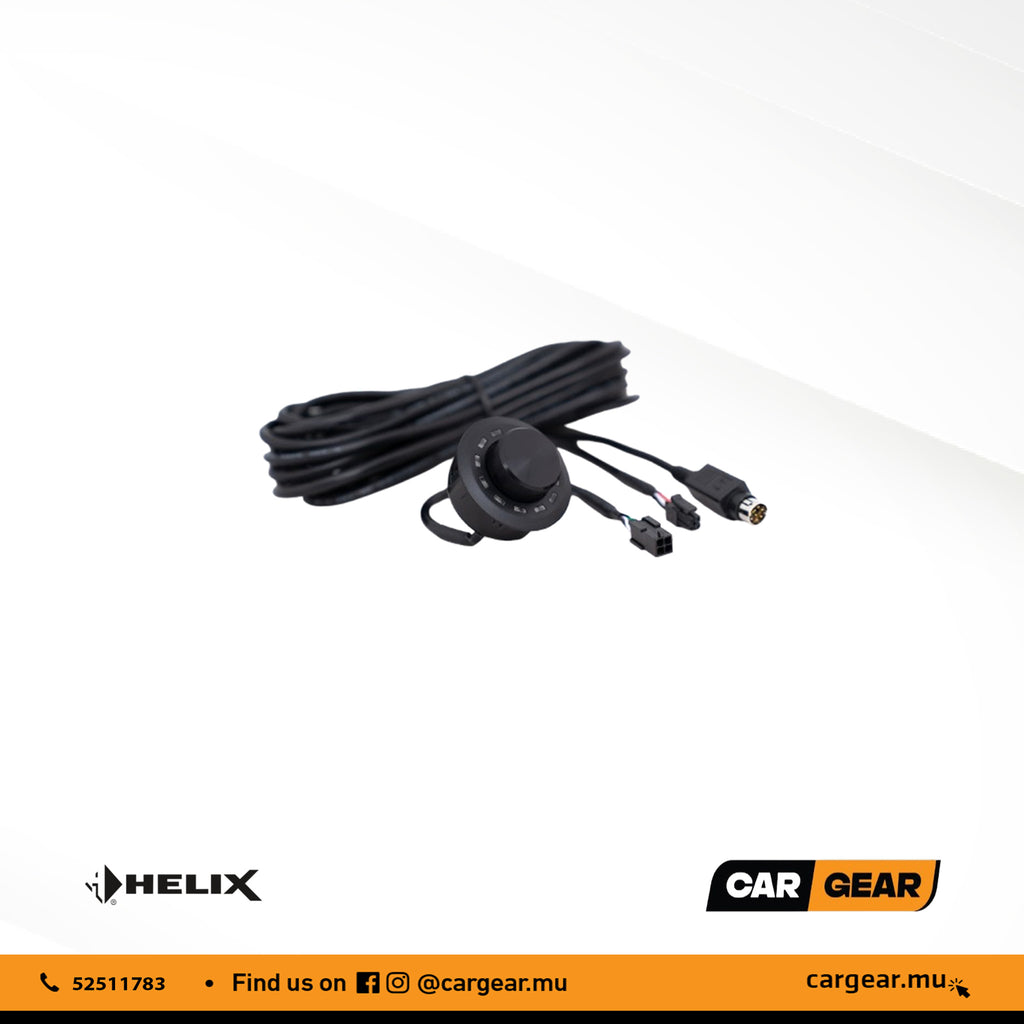

1 x Remote control CONDUCTOR
1 x 4.80 m connection cable for Smart Control Port
